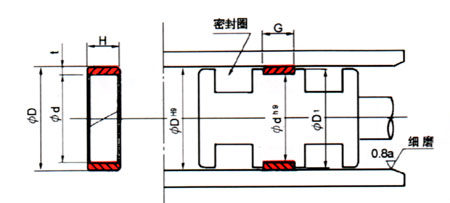

耐久酚樹脂的棉纖維 < 華爾卡號432 - wpl >

單位：mm
| 編 號 | d | d | h | t | d |
| |
wpl 31.5 | 31.5 | 27.5 | 8 | 2 | 31 | 8 |
| wpl
32 | 32 | 28 | 8 | 2 | 31.5 | 8 |
| wpl
35.5 | 35.5 | 31.5 | 10 | 2 | 35 | 10 |
| wpl
40 | 40 | 36 | 10 | 2 | 39.5 | 10 |
| wpl
45 | 45 | 41 | 12 | 2 | 44.5 | 12 |
| wpl
50 | 50 | 46 | 12 | 2 | 49.5 | 12 |
| wpl
56 | 56 | 50 | 16 | 3 | 55.4 | 16 |
| wpl
63 | 63 | 57 | 16 | 3 | 62.4 | 16 |
| wpl
71 | 71 | 65 | 20 | 3 | 70.4 | 20 |
| wpl
80 | 80 | 74 | 20 | 3 | 79.4 | 20 |
| wpl
90 | 90 | 84 | 25 | 3 | 89.4 | 25 |
| wpl100 | 100 | 94 | 25 | 3 | 99.4 | 25 |
| wpl112 | 112 | 106 | 30 | 3 | 111.4 | 30 |
| wpl125 | 125 | 119 | 30 | 3 | 124.3 | 30 |
| wpl140 | 140 | 134 | 40 | 3 | 139.3 | 40 |
| wpl150 | 150 | 144 | 40 | 3 | 149.3 | 40 |
| wpl160 | 160 | 154 | 40 | 3 | 159.3 | 40 |
| wpl170 | 170 | 164 | 50 | 3 | 169.3 | 50 |
| wpl180 | 180 | 174 | 50 | 3 | 179.3 | 50 |
| wpl190 | 190 | 184 | 50 | 3 | 189.2 | 50 |
| wpl200 | 200 | 194 | 50 | 3 | 199.2 | 50 |
| wpl224 | 224 | 218 | 60 | 3 | 223.2 | 60 |
| wpl250 | 250 | 244 | 60 | 3 | 249.2 | 60 |
|
